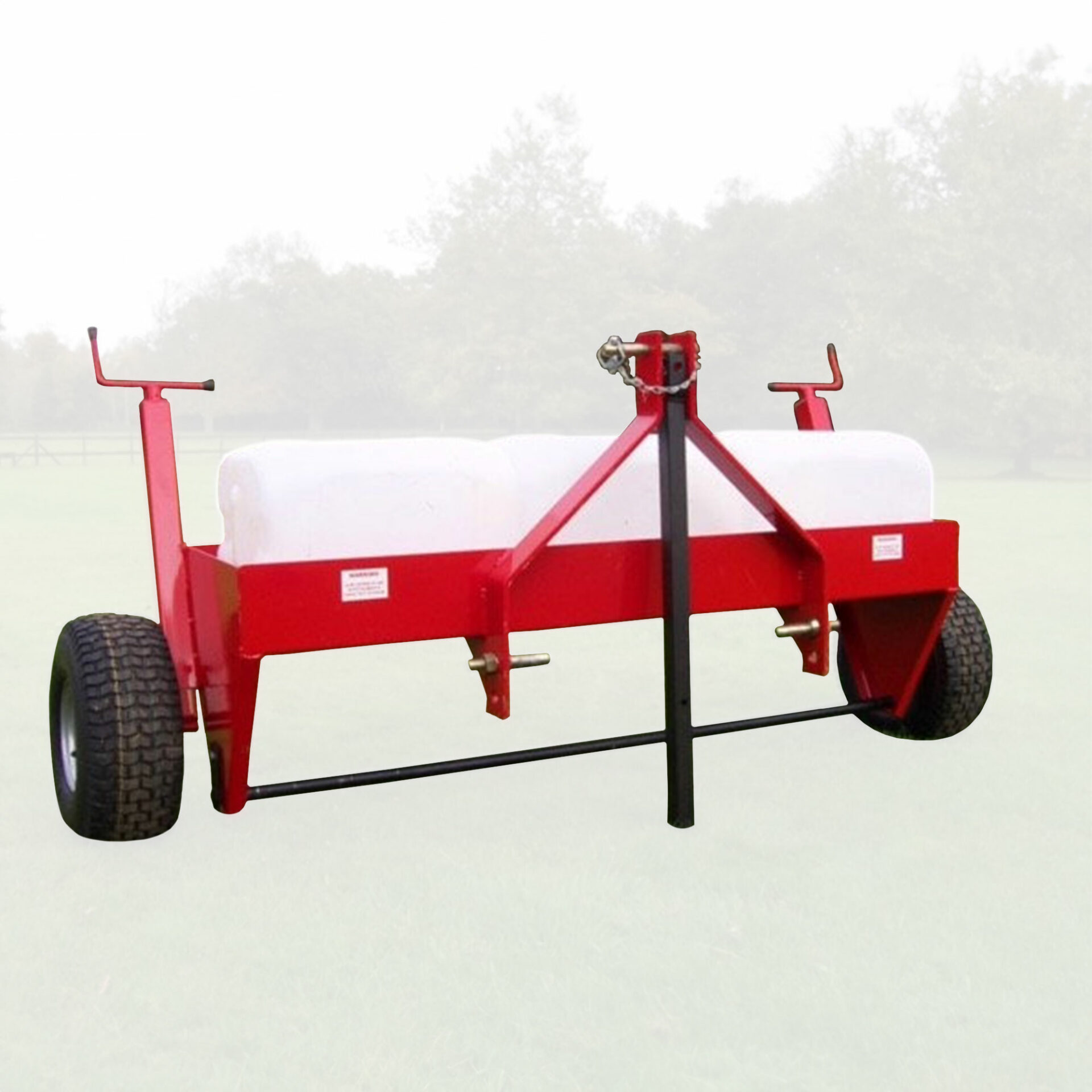

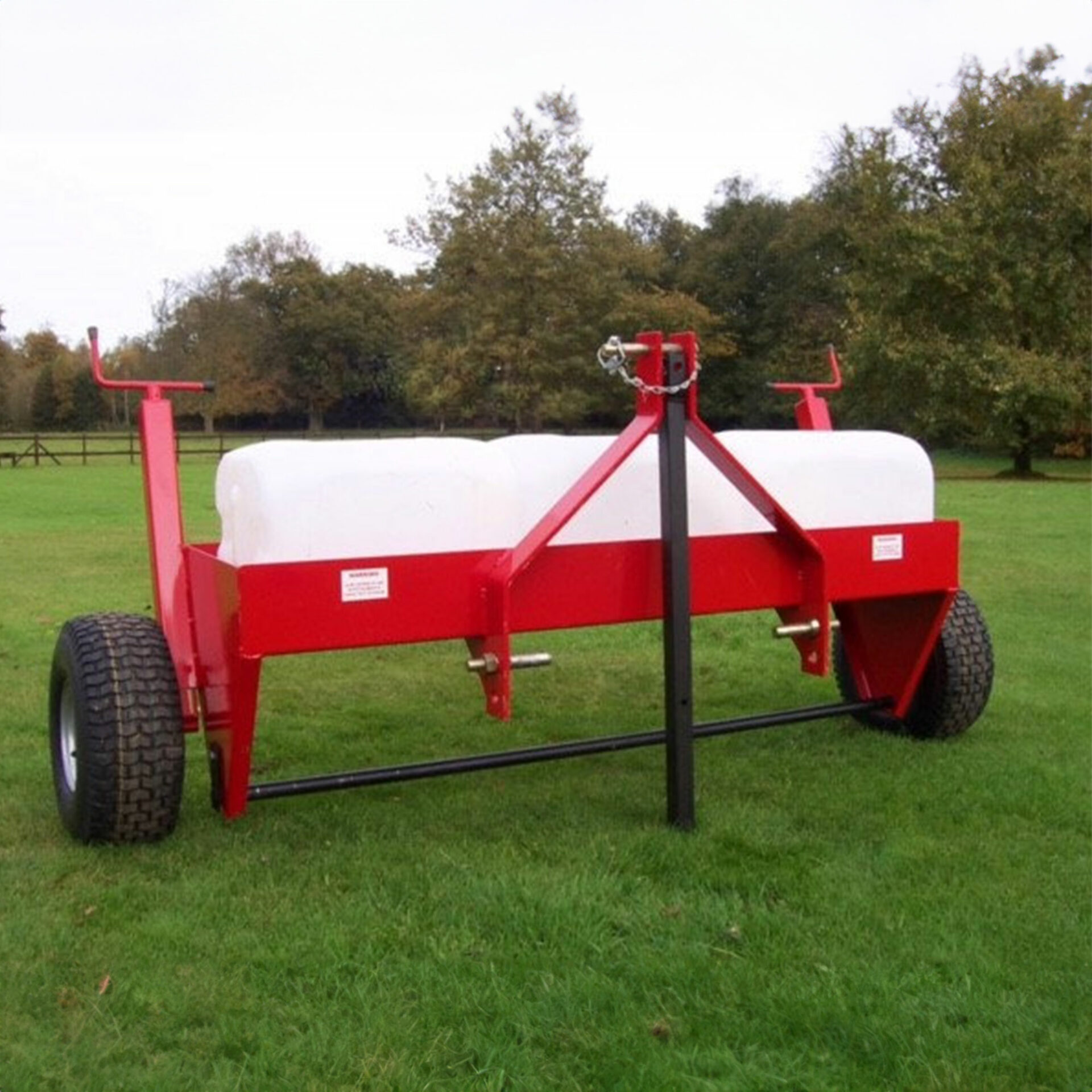

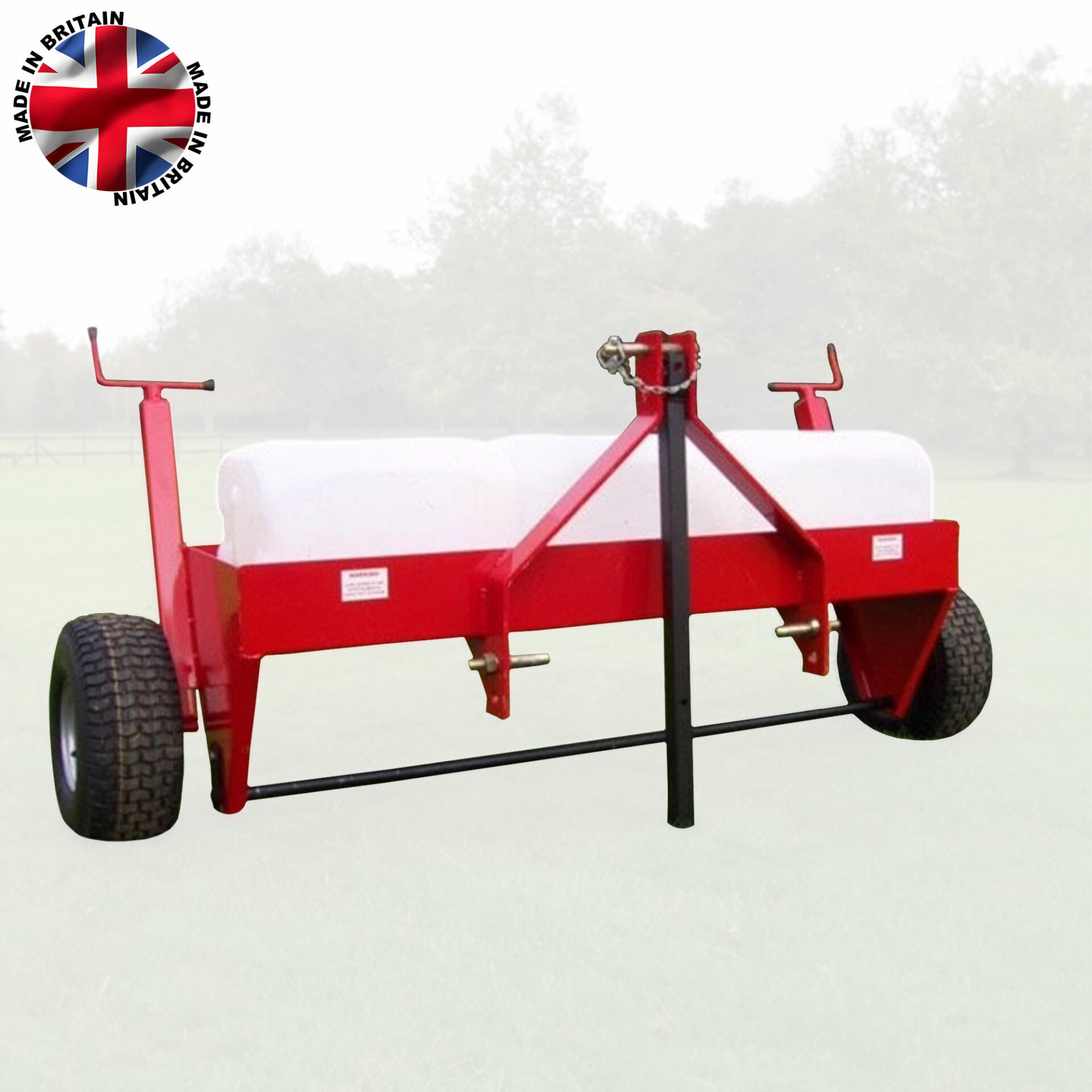

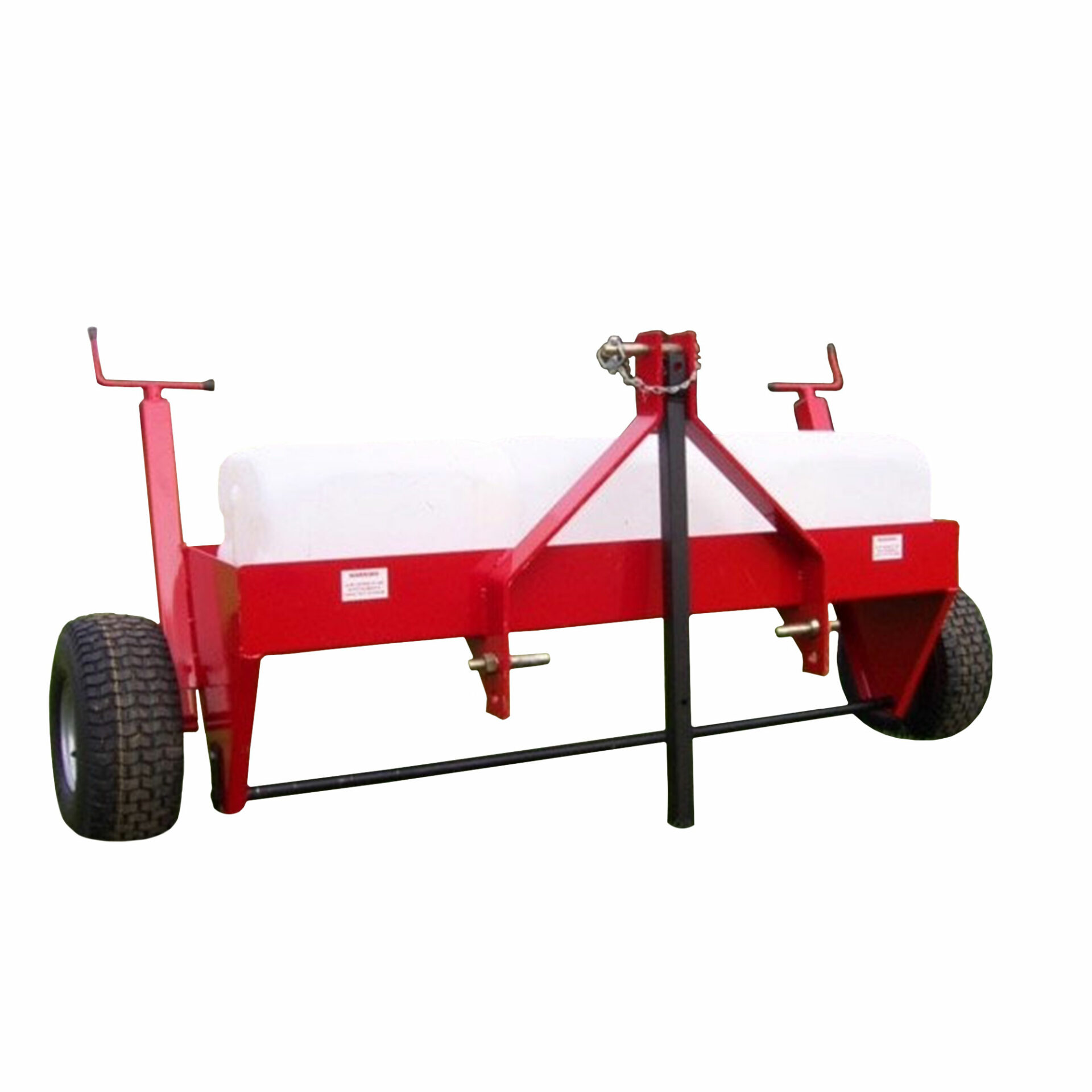

SCH F48M 122cm / 48″ Mounted Carrier Frame

The 48″ Mounted Carrier Frame will fit compact tractors fitted with category one three-point linkage fittings; other fittings configurations can be supplied.

The mounted frame is designed so that a detachable towbar can be fitted if required, making the frame easily converted for towing. This must be requested at the time of purchase.

The frame consists of two transport and depth control wheels, which are adjusted by winding down jacklegs. The wheels are pneumatic, wide-profile, with bearings. The frame has a weight tray and is supplied with three 25 litre water-fillable ballast tanks.

Note: This 48″ carrier frame must be purchased in order to use the 48″ attachments below.

Available attachments:

• SR48 Sorrel Roller
• B48 Brush
• S48 Slitter
• A48 Aerator
• D48 Dethatcher
• L48 Levelling Lute
• AM48 Arena Maintenance
• SP48 Power Sprayer
• R48 Firming Roller
• HT48 Hollow Tine Corer
